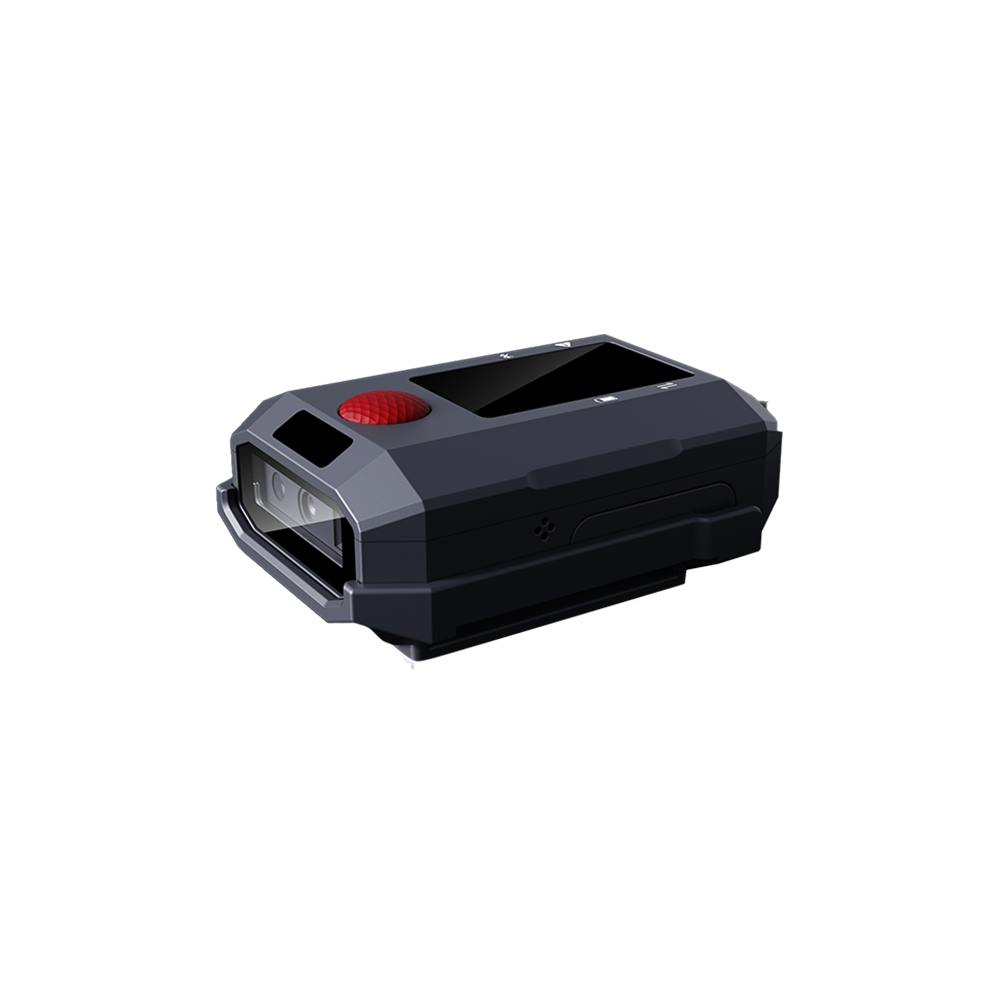

CR-60 Product Introduction


How to free up the brain and hands, save more steps and time to improve the efficiency of our work, this scanning device provides the best choice. This is the world's lightest enterprise-class wearable barcode scanning device. The host is only 26g, adopts a modular combination design, is rugged and durable, can be paired with all common smart devices such as mobile phones and terminals, and is compatible with various operating systems Applications such as (android/windows/linux/ios) can adapt to the needs of wearing methods in different scenarios and are truly integrated wearable solutions.

Used for warehouse inventory management, supermarket cash register, production traceability, express logistics, loading and unloading, packaging and other aspects.

Industry Pain Points

In actual production line and warehouse operation scenarios, gun-type barcode scanners are not always the best choice, especially for mobile workers. It takes 5 to 8 seconds for operators to pick up, scan, and put down the handheld scanner each time. For workflows that require high-frequency scanning, it will take up a lot of working time. Lightweight and durable, more comfortable to wear scanning solutions.
Solutions



Free your hands, mini appearance, scan code freely without any sense of restraint

Product characteristics

  • Battery removable with reduced total cost of ownership
    Simplified wearable product solution, modular design, removable battery, charging gateway with communication, multi-charging module design, etc., greatly reduce the total cost of ownership.

  • Bluetooth connection, stable data transmission
    The self-developed Bluetooth platform provides rich API, which can realize the unshrinking connection with different operating system platforms (android/windows/linux/ios) and ensure the speed and stability of data transmission.

  • Easy to deploy and easy to use
    The simplest wearable mobile deployment solution, plug and play, operators can also use the screen or sound, vibration indicators to confirm the smooth progress of the workflow, and provide timely warning and improvement

  • Switch at will and adapt to multiple scenes
    Different ways of dressing can meet the needs of different scenes, such as gloves can be used in handling scenes, lanyard can be used in retail scenes, and so on.
Plug and Play
Visual Wearable
Bluetooth connection
Two-way communication
Low power design
Light in volume
Plug and Play
Visual Wearable
Bluetooth connection
Two-way communication
Low power design
Light in volume

Product Parameters

Appearance size:L49mm *W34.5mm *H19.5mm
Base size：L89.5mm*W76mm *H41mm
Weight:About 26g (mainframe without gloves)
Capture lens: purple light (customizable)
Acquisition mode: host button trigger /
glove button trigger / automatic scan
Battery type: 195mAH, removable
Charging current: minimum 0.2C
Charging method: magnetic seat charging /
magnetic suction line charging 5V/1A
Connection: BLE 5.1protocol, support for HID/SPP, OTA upgrade
Connection range: communication base 20m (open)
10m (depending on site obstacles)
Multi-channel gateway 100m (open) 50m (depending on site obstacles)
Scan notification: scan prompt (red, green, blue)  vibration prompt
Charging tip: the red light indicates that  are charging, and the green light indicates that it is full.
Voice: buzzing
Button: scan button (red): press to start scan
Interface: bottom 2pin interface
Lighting: White LED
Standard: gloves, mainframe (screen / no screen 2 choose 1), battery,Magnetic charging line
Optional: Bluetooth charging communication base, USB charging line, (8-seat charging) Bluetooth multi-channel  concurrent communication gateway
Data acquisition / wireless communication
Scan range: horizontal 44.3 °vertical 28.4 °
                     diagonal: 51 °
(depending on barcode density and code system)
Decoding ability: 1D/2D
Scan barcode density: 5mil
Scanning distance: 3cm-150cm
(depending on barcode density and code system)
Decoding ability:UPC/EAN,Code128Code39, Code93, Code11, Interleaved2of5,Discrete2of5, chinese2of5
Codabar, MSI, RSS, PDF417,MicroPDF417, Composite, RSs, TLC-39, Datamatrix, QRcodeMicroORcode, Aztec, PostalCodes, USPostNet:USPlanet;UKPostal:JapanPostalDutchPostal(KIX)
Environmental characteristics / level of protection
Working temperature:-5 ℃ ~ 50 ℃
Storage temperature:-10 ℃ ~ 80 ℃
Relative humidity: 5%-95%RH
Industrial protection grade: IP63
Vibration: with vibrating motor
Anti-rolling strength: can withstand 1500 times 0.5m rolling



Standard configuration

Host
(screen / no screen 2 choose 1)
Gloves
Battery
Communicable magnetic
charging seat
Host
(screen / no screen 2 choose 1)
Gloves
Battery
Communicable magnetic
charging seat
1 / 2

Selection and matchin

Charging&
communication base
USB charging line
Bluetooth multi-channel
concurrent communication
gateway
Bluetooth charging
communication base
(8-seat charging)
Charging&
communication base
USB charging line
Bluetooth multi-channel
concurrent communication
gateway
Bluetooth charging
communication base
(8-seat charging)
1 / 2

Application scenarios

Warehousing logistics
Pharmaceutical logistics
E-commerce logistics
Custom Furniture
Warehousing logistics
Pharmaceutical logistics
E-commerce logistics
Custom Furniture
1 / 2
