LS-3310 Product Introduction

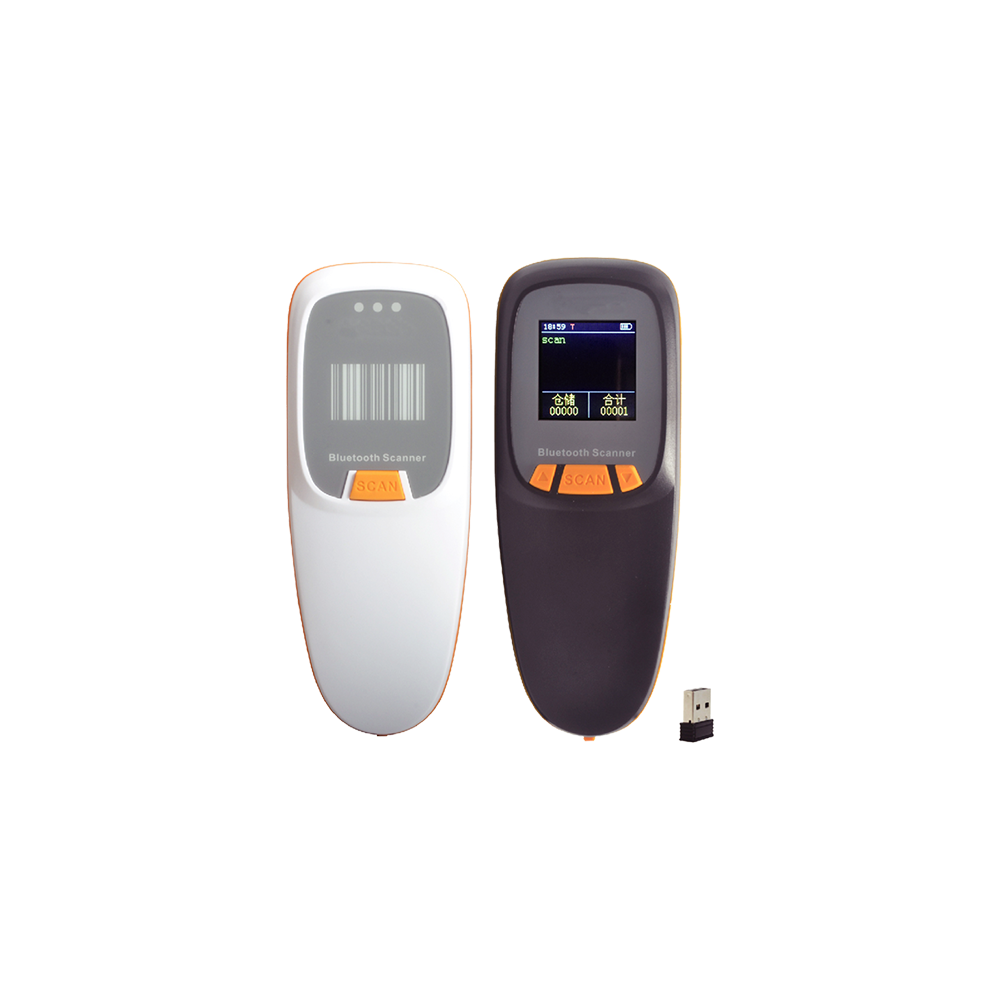

LS-3310 is a high-performance two-dimensional image barcode scanner, which uses the cutting-edge decoding algorithm technology, can interpret a variety of complex one-dimensional and two-dimensional codes, support scanning mobile phones and computers and other screen barcodes, can quickly achieve Wechat and Alipay receiving orders, in line with ergonomic design, comfortable operation, long-time operation is not easy to fatigue, the whole machine dustproof design to meet more scene applications. Blue LED indicator and loud buzzer tone, fast feedback code reading experience, the wire is made of high and low temperature resistant material and high-quality inner copper wire, to meet a variety of service environment, longer life.

Industry Pain Points

  • Traditional manual recording and searching of courier information is time-consuming and error-prone.
  • Manual operation is easy to lead to misdelivery, omission and other problems.
  • Information update lag, affecting the courier status tracking.
  • Inventory management is chaotic, easily lead to backlog or shortage.



Efficient Reading Ability

The code reading ability is strong, the robustness is good, and the DPM with good marks can be read efficiently.
The processor has a strong computing power, can run a more powerful algorithm model, and has a good ability to read inkjet difficult codes.

Product characteristics

  • Using the cutting-edge decoding algorithm technology, it can interpret all kinds of complex one-dimensional code, two-dimensional code and screen code.
  • Hold decoding and wireless dual software online upgrade.
  • The unique design of body engineering, comfortable operation, not easy to fatigue for a long time.
  • Machine full dustproof design to meet more fields and most applications.
  • Ultra-long communication distance, 2.4G can reach 100 meters, Bluetooth can reach 40 meters (open).
  • Offline storage mode is supported; storage up to 512000 characters.
  • Blue and green tricolor LED cue lights, buzzer and vibrator tips, quick feedback experience.
  • Oversized Ronglan battery can be used continuously for a whole day.
  • Support the screen version (1.44 inch color screen), you can clearly see the read bar code data, battery power and communication status.
High Speed
Scanning
Type
Super
performance
Multi-Angle
One-dimensional
Bar Code Scanning
2D Bar Code
Scanning
High Speed
Scanning
Type
Super
performance
Multi-Angle
One-dimensional
Bar Code Scanning
2D Bar Code
Scanning

Product Parameters

Image (pixels): 640 pixels (H) 480 pixes (V).
Light sources: Aiming: 617 nm LED;luminitiono4000 LED.
Recognizable bar code: 1D UPC-F.FAN-B UPCIFANJANJ UPC UPC-F.FAN-B & FAN-13.
Image sensor: CMOS.
Scanning speed: 30fps/s.
Scanning distance: 40-200mm@UPO/EAN13mil PCS=90%;20- 250mm@QR 20mil PCS=100%.
Scanning angle: elevation 65 °, rotation 30 °/ deflection 55.
Viewing angle: horizontal 34 °, vertical 28 °.
Reading accuracy: ≥ 4mil.
Printing contrast: ≥ 25%.
Indication: red and blue LED lights, buzzer, motor vibration.
Working band: 2.400GHZ-2.480GHZISM band.
Transmission distance: 2.4G:100 meters / Bluetooth: 40 meters (open).
Stored data: 512000 characters.
Pairing mode: one-on-one.
Display screen: 144 inch color screen (optional).
Operating temperature: -20 °C 60 °C, working humidity: 5% Murray 95% no condensation.
Storage temperature: -40 °C-+ 70 °C, ambient brightness: 50-100.000Lux.
Drop height: 2m.
Size: 135mm*51mm*40mm (length * width * height) weight: 104g.
Box size: 175mm*105mm*46.5mm (length * width * height).
Charging line: straighten 1 meter (Typec).
Working voltage: 5VDC + 10%, working current: 400mA.
Battery capacity: rechargeable battery 1500mAh.
Charging method: line charging, charging time: 4-5h.
Working time: 8h (continuous scanning).



Application scenarios

Store Management
Logistics Industry
Retail Trade
Express Logistics
Store Management
Logistics Industry
Retail Trade
Express Logistics
