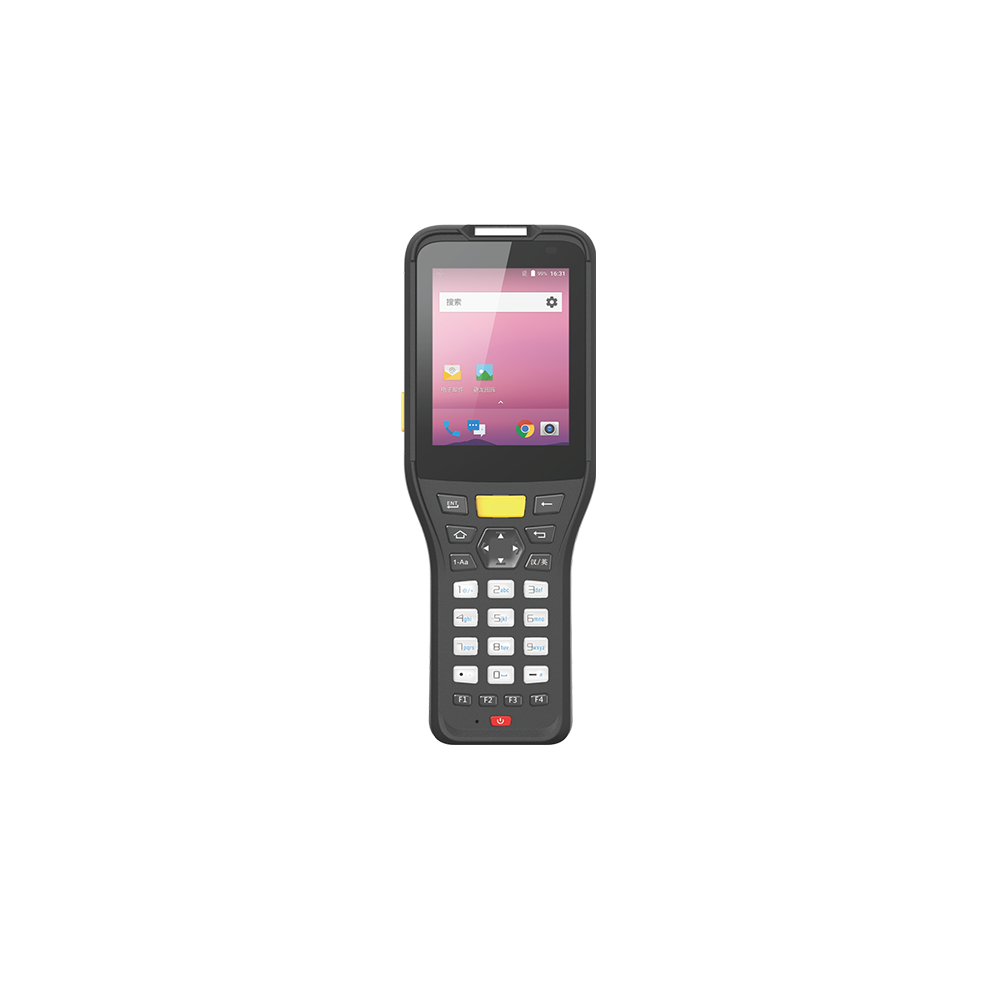

IT-300 Product Introduction




This is an industrial-grade handheld Mobile device with high industrial-grade protection, professional drop test at a height of 1.5 meters, and the equipment is strong and reliable. The scanning engine matches freely to meet various scenarios. It can recognize barcodes such as fog, distortion, damage and distortion. It adopts dual PA and fast roaming to keep the device online at any time, delayed at zero hours, and does not drop the connection in complex network environments. It adopts the latest wireless chips and antenna gain technology to ultra-stable dual-band WIFI to ensure efficient data transmission.



Industry Pain Points

  • Traditional manual recording and searching of courier information is time-consuming and error-prone.
  • Manual operation is easy to lead to misdelivery, omission and other problems.
  • Information update lag, affecting the courier status tracking.
  • Inventory management is chaotic, easily lead to backlog or shortage.



Industrial grade professional intelligent terminal

Meet the needs of various scenarios
The structural design of the combination of soft and hard, professional dustproof and waterproof, solid and reliable equipment.

Product characteristics

  • Ergonomic grip design
    Not easy to fatigue, durable, keys and battery area is stick-shaped, with the best center of gravity design, long-lasting grip without fatigue, with IP65 waterproof waterproof, 1.5 meters of concrete drop resistance lightweight and durable and effective balance of security
  • Ultra-stable WIFI to ensure efficient data transmission
    Stable roaming, effectively solve the signal coverage problem using the latest wireless chip and antenna gain technology to optimize the industrial and warehouse network scenarios, dual-frequency WIFI to achieve switching low latency and ultra-low packet loss rate, network stability and smoothness.
  • Excellent scanning performance for efficient operations
    Frozen Goods Scanning
    Equipped with a unique water mist decoding algorithm, it can easily recognize barcodes fogged by ice packs and support international common 1D, 2D and twisted smudged barcodes across industrial and commercial consumer sectors, which is designed for complex scenarios.
  • Support hot-swappable batteries, never worry about the aging of the backup battery
    Long-lasting battery life without switching off
    Supports hot-swapping, no switching off when changing batteries, large capacity power cell.
    The perfect combination of strong safety and long battery life.
    Meet the needs of the whole day scheduling, changing people without changing the machine.
Long
standby
Slim
body
Super
performance
Rapid
scanning
High-speed
internet
High-definition
pixel
Long
standby
Slim
body
Super
performance
Rapid
scanning
High-speed
internet
High-definition
pixel

Product Parameters

Processor: Qualcomm QM215
Operating System: Android 9
Memory (ROM+RAM): 16GB+2GB (optional 8GB+1GB)
Expansion Slot: Micro SD card
SIM: 1 Nano-SIM card
Display: 2.8-inch IPS HD screen, resolution 640*480
Touch screen: industrial-grade capacitive screen, support touch with gloves, wet hand operation
Camera: rear 8MP, fixed focus, with fill light
Keyboard: 24 keys on the front, 2 scan keys on the side, 1 power key, total 29 keys
Speaker output: 1.2W high power speaker
Alert: Vibration alert LED alert/audio alert
Vibration motor: built-in motor
Battery: 3.6V 4700mAh
Electrostatic protection: ±15KV (air discharge), ±8KV (contact discharge)
IP rating: IP65
Storage temperature: -40C-60C (with battery)
Working temperature: -20C-60C
Size: 173mm*63mm*33mm
Weight: 249g
USB: 1 (Type-C connection) support OTG
Charging connector: 1pc
Standard accessories: power adapter, USB cable, hand strap
Optional accessories: battery charger, wrist strap & case
Bluetooth: BT 4.2 LE
GPS: Support GPS/AGPS/Glonass/Beidou; Target SNR≥39dB (Signal level -130dBm)
NFC: 13.56MHz, readable range within 30mm, protocol ISO14443A/14443B/15693
Scanning accuracy: 3 mil
Rotation angle: 360°
Scanning angle: tilt ±60°, deflection ±60°, rotation ±360°
Laser safety level: Class ll
Recognition speed: 20 times / S
Light source system: white light illumination, laser aiming



Application scenarios

Store Management
Logistics Industry
Retail Trade
Express Logistics
Store Management
Logistics Industry
Retail Trade
Express Logistics
