AGV-DWS555

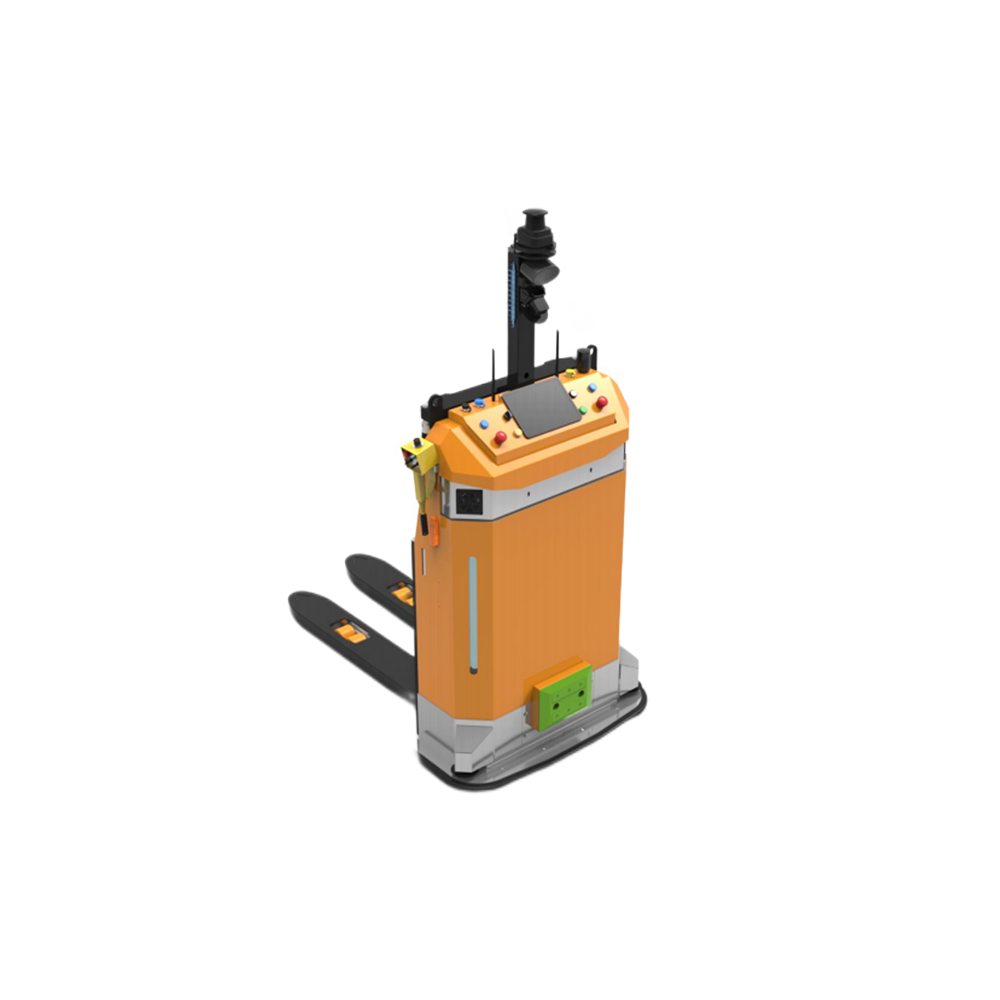

DWS555 Product Introduction

It is an automatic guided forklift module developed based on the Techsorta standard electric stacker truck. The rated load is 1200kg, the lifting height is 1800MM, and the minimum channel width is about 2300mm, which improves the flexibility of load stacking. The AGV car has a precise fork insertion function, which can self-correct and adjust the fork insertion posture according to the actual placement posture of the target pallet. The angle control accuracy of the fork attitude can reach ±0.5°, and the deviation accuracy of the transverse central axis of the fork from the displacement is ±10 mm. The product can optionally be equipped with modules such as damaged tray detection and obstacle detection to ensure safety. Modules such as handheld terminals and automatic charging devices can be optionally selected to meet customer project customization needs.

Industry Pain Points

Traditional manual recording and searching of courier information is time-consuming and error-prone.
Manual operation is easy to lead to misdelivery, omission and other problems.
Information update lag, affecting the courier status tracking.
Inventory management is chaotic, easily lead to backlog or shortage.

Efficient Reading Ability

The code reading ability is strong, the robustness is good, and the DPM with good marks can be read efficiently.
The processor has a strong computing power, can run a more powerful algorithm model, and has a good ability to read inkjet difficult codes.

Product characteristics

The car body adopts natural environmental contour navigation (laser SALM navigation) to implement a zero-environment transformation;
The combination of safety laser and anti-collision edge contact ensures the safe driving of AGVs;
Combined with the intelligent dispatch system to achieve fully automatic command and dispatch;
The driving assembly module adopts digital servo control technology, and the spatial repetitive positioning accuracy is within ±10mm;
Adopt a new path prediction collision type traffic collision detection algorithm and use traffic control locks with minimum interval range to ensure efficient and intelligent traffic control when multiple AGVs operate in parallel;
It has a new accurate fork insertion laser, which can accurately identify the posture and central axis of the target pallet, and adjust the posture and fork insertion.

Product Parameters

Function parameters

Maximum load capacity：1200KG

Fork load center distance：750mm

SLAM Navigation

Stacking AGV lifting height 18

The maximum forward speed of AGV is 1.2m/s, and the backward speed is 0.8m/s

Voice alarm prompt function when crossing corners and encountering obstacles when swinging your head

Discharge accuracy ±1cm

Precise alignment and insertion

Vertical attitude angle with the entry fork of the target cargo ≤1°

Offset left and right from the central axis of the target cargo ≤10mm

Battery parameters

24V 200AH lithium iron phosphate battery, battery life 8H

It has protection functions corresponding to input overvoltage, undervoltage, output overvoltage, undervoltage, overcurrent, output short circuit, fan failure, etc.

The charger has a single-phase AC 220V voltage input and a maximum output power of 3KW

Operation screen

The touch screen can provide exception and error prompts and SOP processing procedures. The touch screen can display the current real-time operating status of the AGV, including the current execution task, current driving speed, power, steering angle speed, map location information, etc. When performing manual intervention operations, you need to enter a password to unlock it. When an AGV has a safety alarm, you can view the location of the warning laser sensor on the touch screen.

Security

AGVs do not have sharp corners, sharp edges, uneven surfaces and prominent parts that can easily hurt people. Each switch and button needs to be clearly identified. The safety sensing area includes a deceleration area, a slow stop area and an emergency stop area. It is protected against forward safety and lateral safety at 270 degrees. It has sensing protection for the fork tip direction. It cooperates with front, rear and lateral, and is also equipped with safety protection for the rear direction. When the edge switch is triggered, the AGV will take an emergency stop operation and needs to be manually unlocked before it can continue to run. When an obstacle appears within the scanning range of the safety laser scanner, a warning tone will be issued: "The road is blocked, please get out of the way"

When an obstacle enters the safety laser outer warning zone, the forklift performs a deceleration operation. When the obstacle enters the safety laser inner protection zone, the forklift performs an emergency stop operation.

Under a no-load speed of 1m/s, the AGV's rapid braking sliding distance is ≤40cm. The emergency stop button needs to be installed in a position that is easy to reach by the AGV. The AGV safety protection circuit has a leakage protection device.

Operating environment

The road surface is clean and tidy, and there are no obstacles with a height ≤8cm on the AGV's driving path

There must be no hanging obstacles or obstacles that cannot be sensed by safety laser scanning radar sensors (such as water pipes, irons, etc. extending from the wall) above the pathAllowable uneven drop in path ground: ±5(mm)Network support: Use WIFI 2.4G/5.8G, network delay ≤100ms

Requirements for the size of the goods to be carried: It is suitable for the nine-square grid pallet with the specification of 1500* 1500mm on site.
