CNK-6000 (Six-sided Scanning)

Name: CNK-6000 (Six-sided Scanning)
SKU: 18066900413365931701662210

Product enquiry

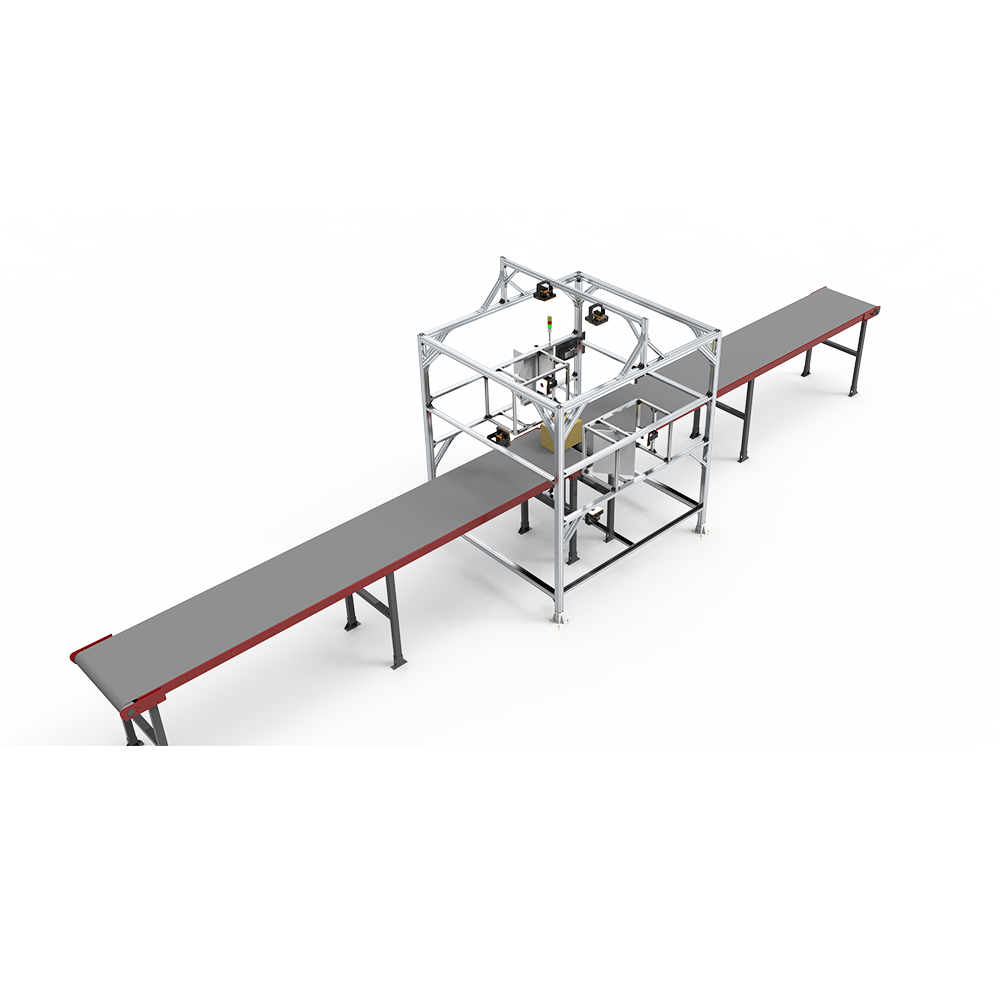

CNK-6000 (Six-sided Scanning)

CNK-6000 Product Introduction

This is a dynamic volume measurement system that integrates modules such as dynamic weighing, volume, barcode and image information. It adopts 3D laser measurement, dynamic belt scale and industrial vision code reading technology. The measurement accuracy reaches ±10mm and the weighing accuracy reaches ± 5g, realizing fully automatic high-speed collection and improving the overall operating efficiency of warehousing.

Industry Pain Points

The traditional efficiency is very low, and a large number of people are needed to do the measurement. A large warehouse may need 20-40 people to collect parcels and measure volume information. The labor cost is high, the efficiency is low, and the error rate is high.

Solutions

Information superposition order number overlay
visual traceability order query parcel query video traceability

Perfectly solving all problems by one
action in one second

Time And Cost Calculation

How long do you need to Dispose 10000pcs packages? ➡︎ Before:10000*3s=500mins=8.3h Now:10000*1s=166mins=2.7h

Reduce
5.6h/day

Labor cost
US$15/h

You'll save
US$84/day

10 workstations
distribution center

Youll save
US$840/day

Youll totally save US$302400/year

Reduce
5.6h/day

Labor cost
US$15/h

You'll save
US$84/day

10 workstations
distribution center

Youll save
US$840/day

Youll totally save US$302400/year

Product Parameters

Measuring technology: 3D binocular vision technology

17E: 0.1KG-60KG

Volume accuracy: plus or minus 10 mm

Measuring range: 1200*800*800 (mm)

Weight accuracy: 1/3000

Automatic scanning: intelligent/industrial camera code reading

Scanning depth of field: 60cm

Scanning recognition rate: 99.5%

Conveyor line height from the ground: 700mm (standard)

Conveyor line width: 1200mm (standard)

Processing capacity: 3500 pieces/hour Line speed: 50-100m/min

Power supply: single-phase 220V 50~60HZ

Peripheral accessories: receiving workbench (optional components)

Data interface: customized development of docking program according to demand

Application industry: logistics express, cross-border e-commerce, chain supermarkets

Techsorta IoT as the volume of China A leader in measurement, specializing in high-precision volume measurement technology, using infrared detection depth, 3D vision imaging technology and patented algorithms, measurement accuracy can reach ±5mm, and quickly and accurately Measure package volume, weight, bar code, image and other information, synchronize data to user systems, and archive photos of objects for traceability management. The application scenarios are flexible and convenient, which can greatly improve user productivity, save labor costs, and compensate for loss of revenue.
