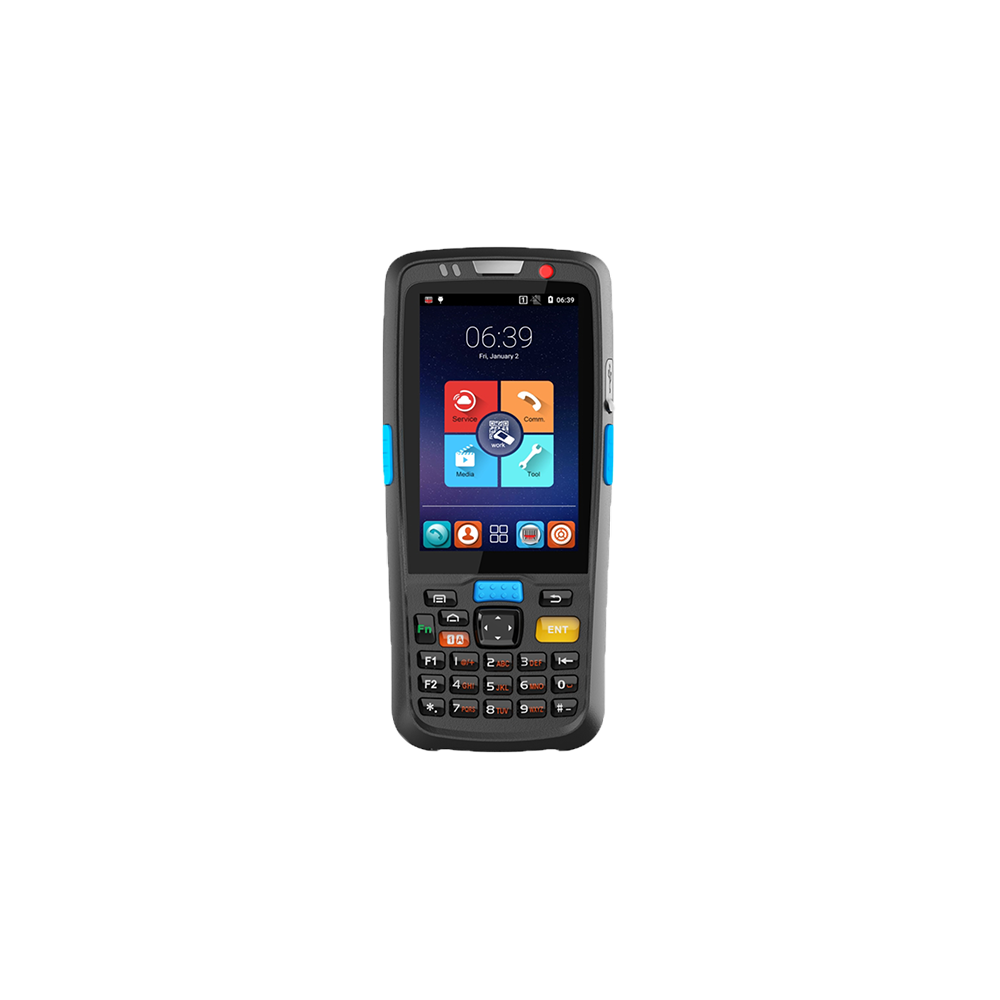

IT-5800 is a reliable and powerful mobile data acquisition terminal with a complete digital keypad. Based on Android 8.1 operating system, equipped with Qualcomm quad-core CPU, using first-class manufacturer accessories, equipped with advanced data acquisition components (1D/2D bar code scanning, RFID support), with 4G wireless data and communication functions, is an industry terminal with superior performance and quality.
Meet the needs of various scenarios
The structural design of the combination of soft and hard, professional dustproof and waterproof, solid and reliable equipment.
| Technical features |
| Processor: Qualcomm quad-core |
| Operating system: Android 11 |
| Storage: 2GB RAM/16GB ROM, supports up to 32GB external storage |
| Display: 4.0-inch IPS ultra-wide-angle visual screen/WVGA (480*800) |
| Touch: multi-touch capacitive screen, Corning Gorilla Glass |
| Keys: 26 physical keys (power on/off key, scan key, custom key, navigation key, numeric key, function key), super wear-resistant IML film in-film overprinting process |
| Battery: Lithium-ion polymer, 3.8V, 3800mAh/built-in backup battery 150mAh (main battery can be replaced without shutting down) |
| Barcode engine: supports one-dimensional scanning/two-dimensional scanning (flexible configuration of Zebra/Honeywell and other brand scanning engines) |
| NFC: supports ISO14443/ISO15693 standard 13.56MHz RFID tag recognition, can recognize second-generation ID cards |
| Camera: 5M/autofocus, support flash, rear camera 5M AF |
| Positioning/Navigation: GPS/Beidou/Glanoss positioning |
| Indicator: System indicator, Scan indicator |
| Audio system: Built-in speaker, handset, microphone, vibrator |
| Sensor: Gravity sensor |
| WLAN: 2.4G/5G dual-band, 802.11 a/b/g/n built-in antenna, security standards WEP, WPA, WPA-PSK, WPA-v2.0 |
| WPAN: Bluetooth V4.1+BLE |
| USB interface: Micro USB2.0, supports USB OTG |
| Charging interface: Micro USB, 1.5A fast charging, optional charger |
| Data/voice service: Supports full network access in mainland China. 1 SIM card slot, 1 T card slot, 1 PSAM card slot |
| Antistatic: ±8KV contact discharge; ±12KV air discharge |
| External accessories: USB cable, RS232 cable, charger |
| Environmental characteristics |
| Operating temperature: -20°C~60° |
| Storage temperature: -40°C~80° |
| Humidity: 10% to 95% (non-condensing) |
| Drop specification: Can withstand multiple drops from 1.5 meters to the concrete floor, and can roll over 500 times within a diameter of 0.5 meters |
| Industrial grade: IP65 |
| Physical characteristics |
| Appearance size: 171mm (length) X widest part 73/handshake part 67.3mm (width) X scanning head 34.4/thinnest part 23.5/battery cover 28.4mm (thickness) |
| Weight: 275g (including battery) |
